IWS55L-3D5250B-MAAFC
Product Hub Servo Catalog

IWS55L-3D5250B-MAAFC

Fuxing stepper motors provide high-performance two-phase and three-phase hybrid stepper motors with various sizes and output torques, single polarity or bipolar control, and single or dual axis. The products are divided into standard type, torque enhanced type, high protection type, etc., which can fully meet the various application needs of different users.
option:
  • IWS55L-3D5250B-MAAFC
  • IWS55L-3D5250B-MAAFC
  • IWS55L-3D5250B-MAAFC
  • IWS55L-3D5250B-MAAFC

1. Specifications

ModelIWS55L-3D5250B-MAAFC
Diameter Size140mm
Rated Voltage24VDC
Rated Current5.8 Arms
Maximum speed250rpm(Line speed   2m/s)
Rated Torque3.5 N.m
Peak Torque8 N.m
CommunicationUART+CAN
UART Baudrate115200bps,support   controlled by controller or PC software
CAN Baudrate500kbps/1Mbps set by   DIP switch
Protection   FunctionOver-Voltage,Low-Voltage,Over-load,Short-circuit,High   temperature,Speed-loss etc.
Operating   Temperature-10℃~40℃(Non-freezing)
Operating   Humidity5~95%RH(Non-condensing)
Storage   Temperature-10℃~70℃(Non-freezing)
Storage   HumidityBelow   90%RH(Non-condensing)
Protection   ClassIp67 except shaft
Weight2Kg
Suggested Load   (2 PCS)Below 80kg

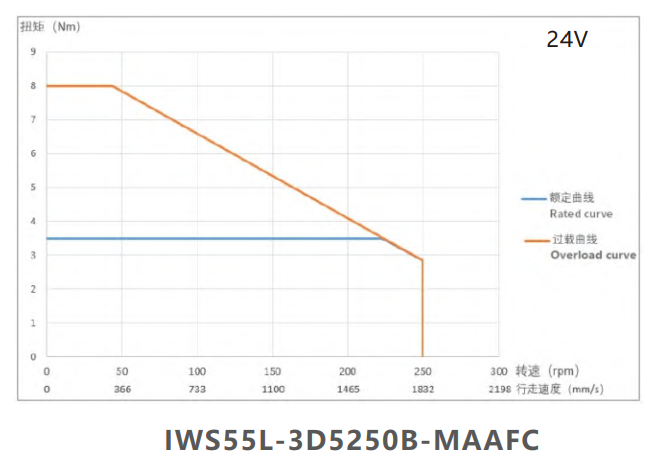

2. Torque Curveimage

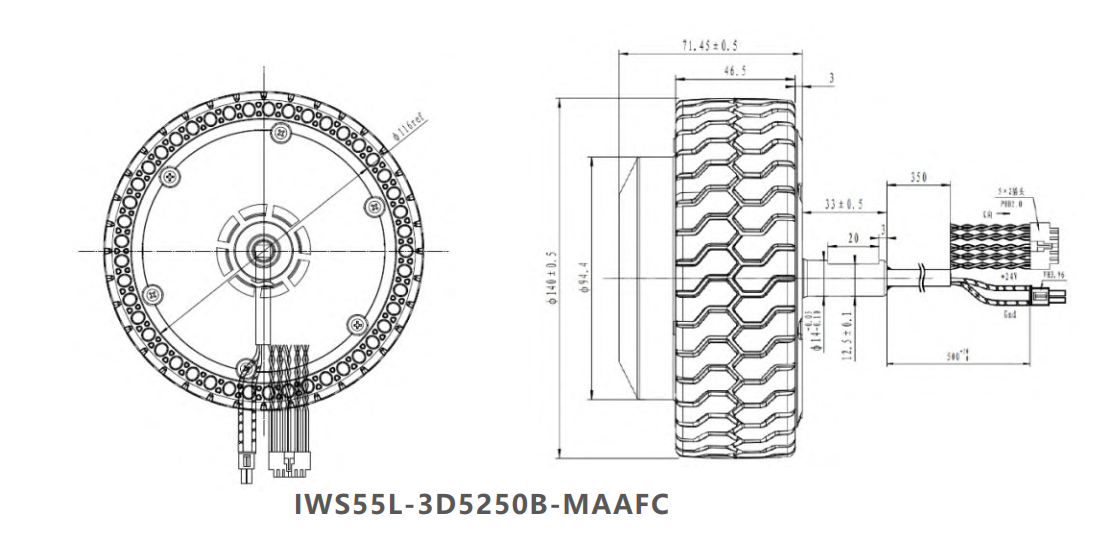

Motor size


Download
IWS Series Hub Motor Motor User Manual - Fulling Motor 1.1 MB
