FL42CBL-42JXF100K
Product Planetary gearbox

FL42CBL-42JXF100K

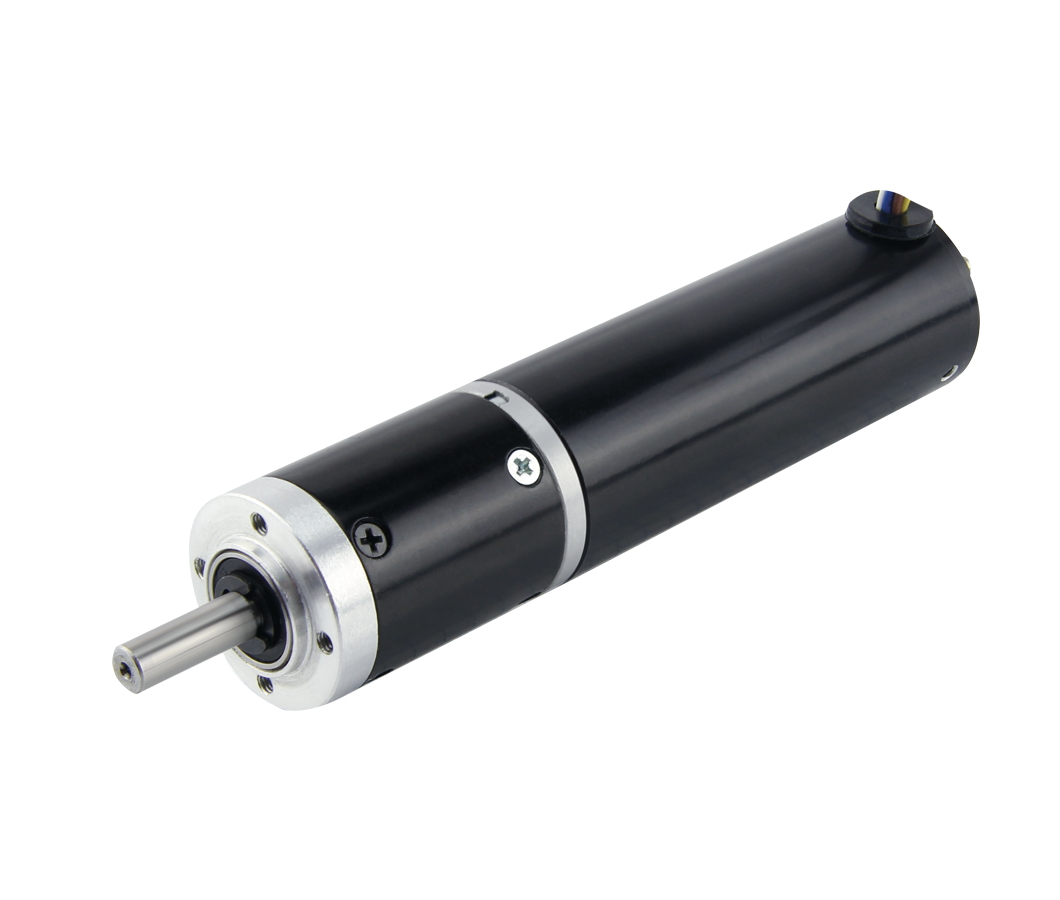

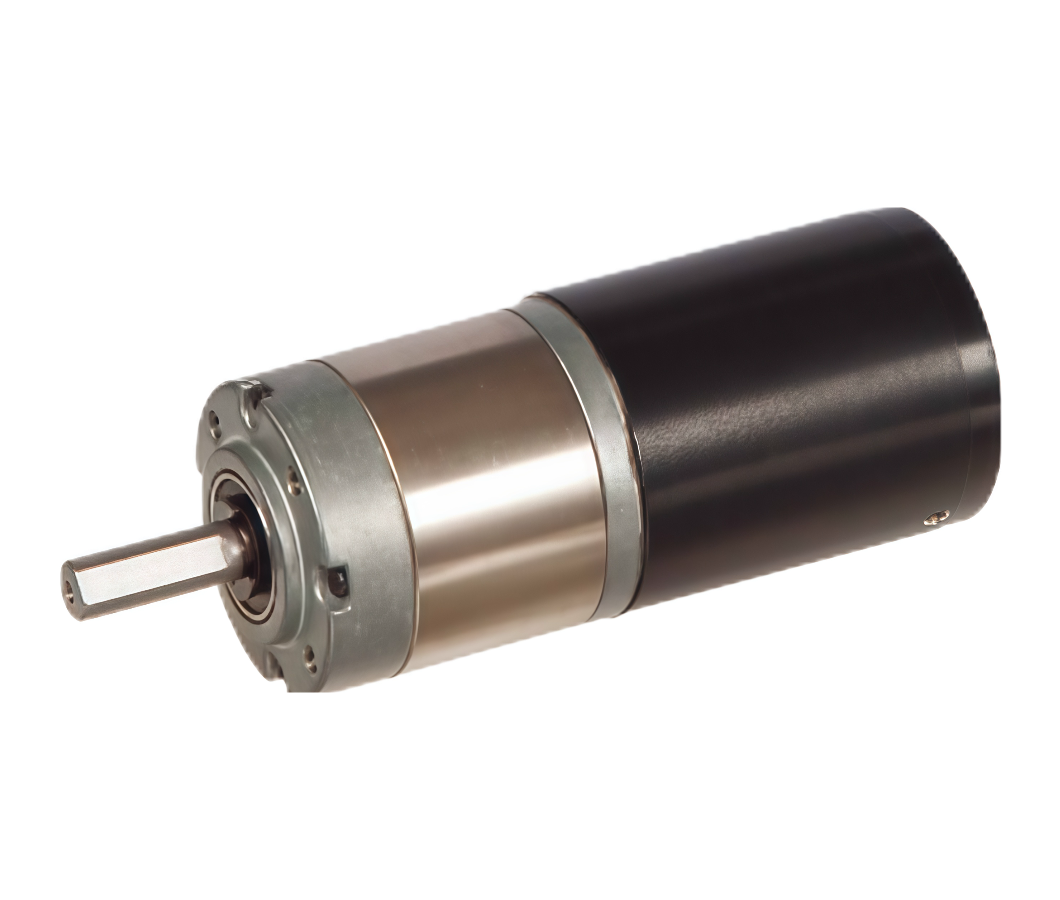

42mm economical brushless motor with 42mm planetary gearbox
option:
  • FL42CBL-42JXF100K
  • FL42CBL-42JXF100K
  • FL42CBL-42JXF100K
  • FL42CBL-42JXF100K

无刷直流行星齿轮减速电机 (内齿圈材质:粉末金属)

BLDC Planetary Gear Motor (Ring Gear Material:  Metal and Powder)

FL42CBL/42JXF100K

Φ42行星减速器,允许转矩范围:1N.m~10N.m

42mm OD Planetary Gearbox,

Permissible Load Range: 1N.m~10N.m



接线方式   Wire Diagram

UVWVccHaHbHcGND
黄Yellow红Red黑Black红Red蓝Blue绿Green白White黑Black
UL1332   AWG22UL1430   AWG26



无刷电动机主要技术参数  Brushless Motor Technical Data

电机型号极 数相 数额定电压空载转速额定转速额定转矩额定功率峰值转矩峰值电流电 阻电 感
TYPENumber of polesNumber of phaseRated voltageNo-load speedRated speedRated torqueRated powerReak torquePeak currentLine to line resistanceLine to line inductance



VDCr/minr/minmN.mWmN.mAohmsmH
FL42CBL60-2442832442003200120403606.31.21.6
FL42CBL66-24598324590040001506345070.750.8



无刷行星齿轮减速电机主要技术参数  Brushless Gear Motor Technical Data

配置FL42CBL60-2442无刷电机(LD=60mm)     FL42CBL60-2442 BLDC Motor(LD=60mm)

减 速 比   Reduction ratio3.75.21419274959688295115181
减速级数 Number of gear trains112223333334
减速器长度(L)  Length(L)mm31.531.542.142.142.152.552.552.552.552.552.562.9
空载转速   No-load speedr/min113281130022115686716251443723
额定转速  Rated speedr/min86361822916811965544739342818
额定转矩  Rated torqueN.m0.40.561.41.92.64.35.267.28.31010
最大瞬间允许负载Max. permissible load in a short timeN.m3312121225252525252530


配置FL42CBL66-2459无刷电机(LD=66mm)     FL42CBL66-2459 BLDC Motor(LD=66mm)

减 速 比   Reduction ratio3.75.21419274959688295115
减速级数 Number of gear trains11222333333
减速器长度(L)  Length(L)mm31.531.542.142.142.152.552.552.552.552.552.5
空载转速   No-load speedr/min1590113942131121912010087726251
额定转速   Rated speedr/min1081769286211148826859494235
额定转矩   Rated torqueN.m0.50.71.72.33.35.46.57.591010
最大瞬间允许负载Max. permissible load in a short timeN.m33121212252525252525


Motor size


Download
