Product PM stepper motor

15/25BYZ

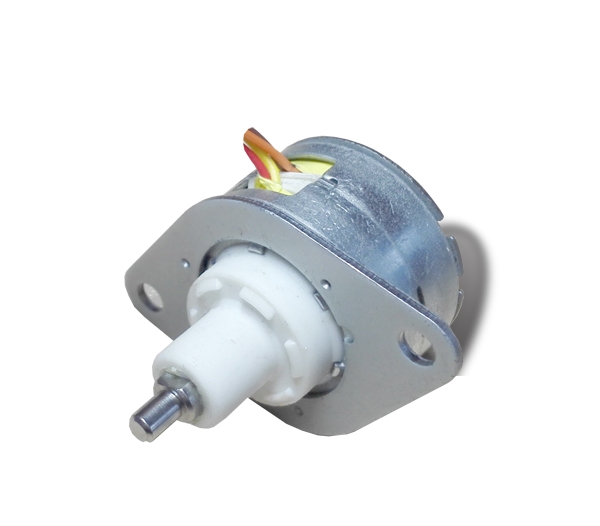

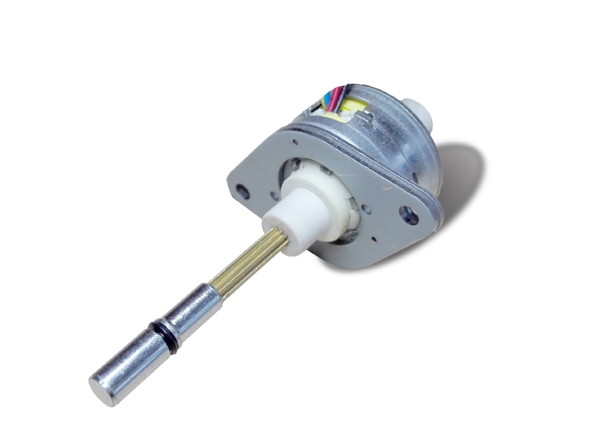

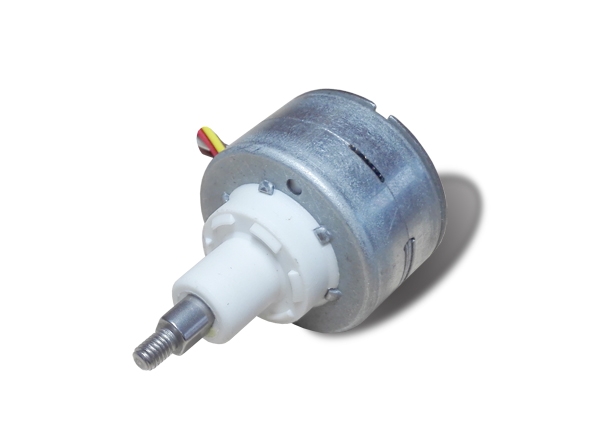

Φ15,25mm Linear PM Stepper motor
option:
  • 15/25BYZ
  • 15/25BYZ
  • 15/25BYZ
  • 15/25BYZ



电性能参数Specifications

规格型号

Model

步距角

Step Angle (Deg.)

相数

No.of Phase

电压

Voltage(V)

电流

Current

(A)

电阻

Resistance

(Ω)

电感

Inductance

(mH)

步长

Step Avail (mm)

推拉力

Push/Pull Torque

(N)

行程

Journey

(mm)

引出线型号

Leads

接线图

Wdg

外形图

Fig

15BYZ-13

18

2

24

0.1(constant)

30

6

0.02

4

≧12

UL1061 30#

a

1

25BYZ-A04

15

4

5

0.23

22

4.3

0.0417

7

≧12

UL1061 28#

c

2

25BYZ-A01(09)

15

2

12

0.23

53

23.5

0.0417

25

≧12

AF-200 28#

a

3

25BYZ-A022

15

4

2

0.23

53

9

0.0417

15

≧22

UL1061 28#

c

4

25BYZ-A035B

7.5

2

12

0.14

84

48

0.0127

33

≧14

UL1061 28#

a

5

25BYZ-B01

15

2

12

0.23

53

23.5

0.0417

20

≧40

UL1061 28#

a

6

25BYZ-B058A

15

2

5

0.625

8

4.7

0.0508

20

≧35

UL1061 26#

a

7

25BYZ-C06

7.5

2

5

0.34

14.7

7.5

0.0254

30

≧13

UL1061 26#

a

8

25BYZ-C07

7.5

2

5

0.34

14.7

7.5

0.0254

30

≧13

UL1061 26#

a

9

25BYZ-C017

7.5

2

7

0.15

47

17.8

0.0254

9.8

≧13

UL1095 28#

a

10


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.


Motor size





接线图


Download
