BLD2403TC

Product Brushless motor driver

1. Closed-loop speed control by Hall signal. Maximum torque can be achieved at low speeds.
2. Wide speed adjustment range: support 200~20000 rpm speed range.(Two-pole motor)

option:

Inquiry Contact

Parameter
Overall Dimensions
Download
Cooperation

Features :

● Closed-loop speed control by Hall signal. Maximum torque can be achieved at low speeds.

● Wide speed adjustment range: support 200~20000 rpm speed range.(Two-pole motor)

● Provide soft start and stop function, softer start and stop, higher security.

● Wide voltage input range, adapt to 8~30V DC power supply.

● High current driving ability, continuous rated current up to 3A, the peak current up to 6A.

● Support external Potentiometer, external voltage and external PWM speed control.

● Provide over-voltage, under-voltage, over-current, over-temperature, hall sensor error protection and alarm function.

● Support CAN2.0B Modbus protocol.

Typical application :

BLD4820TC is widely used in textile equipment, medical equipment, food machinery and equipment, power tool, garden machine, smart-home device and other electrical automation control fields.

Product overview :

BLD4820TC is applied to the speed control of brushless DC hall motor. Its biggest advantage is that it can always control the motor to maintain the maximum torque at low speed. In addition, this product has advantages of diversified speed adjustment mode, wide speed adjustment range, complete functions, hardware and software full protection, etc.

Diversified speed adjustment mode:

provide potentiometer speed control, voltage speed control, external PWM speed control, CAN speed control, etc. Wide speed adjustment range: support speed adjustment within the range of 200~20000 rpm(Two-pole motor); Complete functions: with functions of enable, positive and negative turning, braking, motor speed signal output, alarm output, etc. Hardware and software full protection: with functions of blocking protection, over-voltage protection, under-voltage protection, over-current protection, over-temperature protection, the hall signal fault alarm, etc.

Function and parameter :

Supply voltage	Rated operating voltage: 24VDC (operating voltage range: 8VDC ~ 30VDC)
Operating current	Continuous current: 3A, Peak current: 6A (Ambient temperature below 25℃)
Power range	≤80 W
Speed range	200rpm～20000rpm (Two-pole motor)
Adapted motor	Brushless DC hall motor（120°）
Working mode	Hall speed closed-loop mode(Factory Default), Open-loop mode(Optional)
Speed adjustment mode	Support external potentiometer speed control(Factory Default),external voltage(0 - 5 V) , and if PWM speed control or CAN speed control is needed, one of them needs to be configured before delivery.
Protective function	Over-voltage protection, Under-voltage protection, Over-current protection, Over-temperature protection, Soft-Start and hall signal fault alarm function.
Working environment	No corrosive, flammable, explosive, conductive gas, liquid and dust.
Heat dissipation mode	Natural cooling or external radiator.
Dimension	98mm×60mm×24.5mm

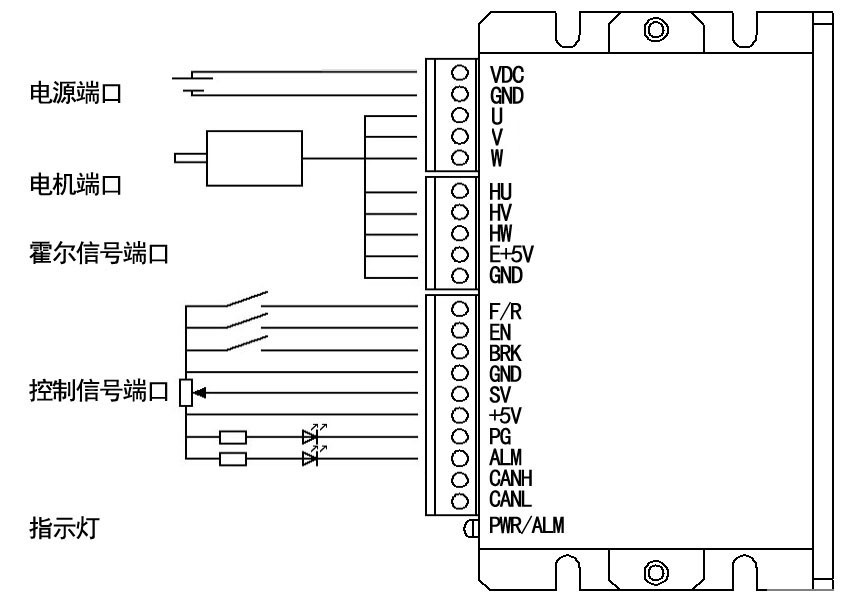

Interface :

Interface	Pin name	Definition	Function description
Power interface	VDC	8~30V DC input	Connect to the positive pole of the power supply
Power interface	GND	Power Ground	Connect to the negative pole of the power supply
Motor interface	U	Motor phase – U	Connect the motor power line – phase U
	V	Motor phase – V	Connect the motor power line – phase V
	W	Motor phase – W	Connect the motor power line – phase W
	HU	Hall signal phase - U	Connect the motor hall phase - U line
	HV	Hall signal phase - V	Connect the motor hall phase - V line
	HW	Hall signal phase - W	Connect the motor hall phase - W line
	E+5V	5V power output	Connect the positive pole of hall power line
	E+5V	(provide Max. 200 mA)	Connect the positive pole of hall power line
	GND	5V Ground	Connect the negative pole of hall power line
	F/R	Positive and Negative turning control	（F/R remains unconnected, CW turning）
Control signal interface	F/R	Positive and Negative turning control	（F/R is short-connected with GND, CCW turning）
	EN	Enable Control	（EN remains unconnected, driver cannot control the motor）
	EN	Enable Control	（EN is short-connected with GND, driver can control the motor ）
	BRK	Brake Control	Electronic brake locking function
			（BRK remains unconnected, motor on）
			（BRK is short-connected with GND, motor off）
	GND	External speed controlling Ground
	SV	0～5 V analog voltage signal	Speed control port
	SV	or PWM input	Speed control port
	+5V	5 V Power output
	+5V	(provide Max. 50 mA)
	PG	Motor speed pulse output	Motor speed signal output needs
	PG	Motor speed pulse output	external pull-up resistor.
	ALM	Alarm output	Alarm output needs
	ALM	Alarm output	external pull-up resistor.
	CANH	CAN port
	CANL	CAN port
Others	PWR/ALM	Indicator	Red flashes once: over-voltage protection
			Red flashes twice: under-voltage protection
			Red flashes three times: over-current protection
			Red flashes four times: over-temperature protection(70℃)
			Red flashes five times: Hall signal error
			Red on: hardware error
			Green on: fail to reach target speed

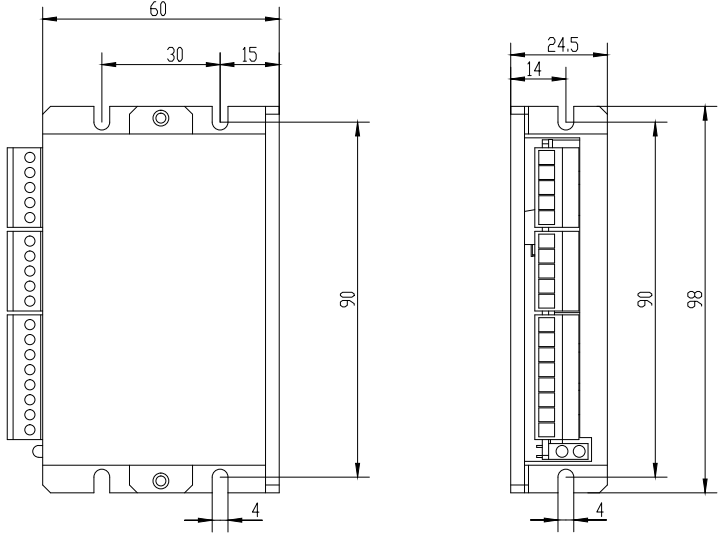

Motor size

2403-1 2403-2

Download

BLD2403TC Brushless DC Driver Manual

448.74 KB
