FL32BLWA
Product Outer rotor BLDC motor

FL32BLWA

Φ 32mm strong torque external rotor brushless motor, 9-24VDC, sintered magnetic steel
option:
  • FL32BLWA
  • FL32BLWA
  • FL32BLWA
  • FL32BLWA

特性概要 ( General Specifications )

绕组连接方式 ( Winding Type )

星形 ( Star connection)

霍尔分布角度 ( Hall Effect Angle )

120度电角度 ( Electrical Angle of 120 degree)

径向间隙 ( Radial Play )

0.02mm@450g

轴向间隙 ( Axial Play )

0.08mm@450g

最大径向负载 ( Max radial force )

14N距法兰5mm ( 5mm From the flange)

最大轴向负载 ( Max axial force )

4.8N

介电强度 ( Dielectric Strength )

600VAC/1S

绝缘电阻 ( Insulation Resistance )

100MΩ, 500VDC

环境温度 ( Ambient Temperature )

-20°C ~ +50°C

绝缘等级 (Insulation Class)

Class B


接线说明(Electric Connection)

PinNo

引出线型号Type

功能Functions

1

FPC

霍尔电源正  ( Vcc )

2


霍尔 W ( Hw )

3


霍尔 U ( Hu )

4


霍尔 V ( Hv )

5


霍尔电源负 ( GND )

6


W相 ( Phase W )

7


V相 ( Phase V )

8


U相 ( Phase U )


电性能(Electrical Specifications)


单 位 (Unit)

FL32BLW18 -9V-3706A

FL32BLW18-12V-4607A

FL32BLW18-24V-4507A

FL32BLW18-48V-4808A

极数  ( Number of poles )


8

相数  ( Number of phases )


3

额定电压 ( Rated  voltage )

VDC

9

12

24

48

额定转矩 ( Rated torque)

mN.m

29.5

25.1

25.5

24.7

连续运行转矩 ( Continuous stall torque)

mN.m

35.4

30.1

30.6

29.6

额定速度 ( Rated speed )

RPM

2100

2800

2760

2950

额定功率 ( Rated power )

W

6

7

7

8

峰值转矩 ( Peak torque )

mN.m

73.8

75.3

76.5

74.1

峰值电流 ( Peak current )

A

3.4

3.2

1.7

0.97

线电阻 ( Line to line resistance )

ohms@20℃

2.87

3.43

13.7

53

线电感 ( Line to line inductance )

mH

1.61

1.87

 7.73

27.8

转矩常数 ( Torque constant )

mN.m/A

23

24.8

51

96.1

反电势 ( Back EMF )

Vrms/KRPM

1.7

1.83

3.77

7.1

转动惯量 ( Rotor inertia )

g.cm2

35

35

35

35

机身长度 ( Motor length )

mm

18

18

18

18

重量 ( Weight )

g

50

50

50

50


该款电机可以根据客户需求定制。

The motor can be designed &manufactured with customized request.

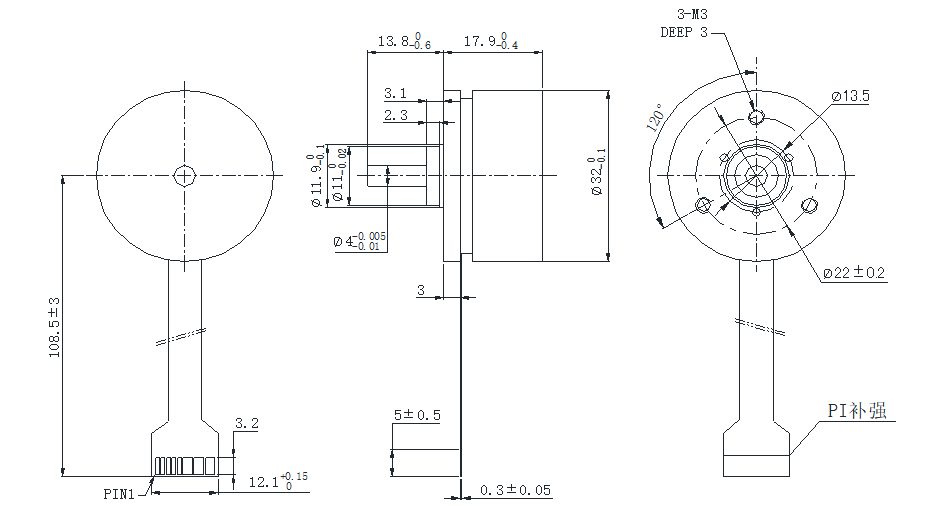

Motor size
